Modern visual communication uses advanced display solutions to grab attention and share information well. At the core of this change are LED display systems. They use organised light-emitting diodes.
These screens have many LED light beads in patterns to show complete images. This setup is called a dot matrix. Each light bead is a pixel in the picture.
The tech works by controlling these light clusters for bright visuals. It brings high brightness, reliability, and long life.
Knowing the LED technology basics helps us understand today’s digital displays. This knowledge is key to seeing how these displays work in many fields.
Understanding the Fundamentals of Matrix Technology
Matrix technology is at the heart of today’s display systems. It organises light-emitting elements into grids for vibrant visuals. This method allows for precise control, making modern LED displays sophisticated.
Defining Matrix Technology in Display Systems
Matrix technology organises LEDs into rows and columns. This grid-like setup lets each element be controlled individually. It keeps the system efficient and controlled.
LEDs are the basic units in this technology. Each LED acts as a pixel, controlled separately. This allows for text, images, and videos to be displayed through light patterns.
The Basic Principles Behind Matrix Organisation
Matrix organisation is based on simple yet effective principles. It uses rows and columns to address each element. This makes control easier and more efficient.
Related Posts:
- What Is Banking Technology Fintech and Digital…
- How Teachers Use Technology to Support Effective Instruction
- What Is Microban Technology in Washing Machines Odor…
- How Technology Has Changed Food Production From Farm…
- Is the Acura MDX Technology Package Worth It…
- Is Docker a Cloud Technology Containerization Explained
This method also cuts down on the number of control lines needed. For an m×n matrix, only m+n lines are required. This makes large displays more practical and affordable.
Pixel Configuration and Arrangement
Pixel arrangement is key in matrix technology. The most common pattern is a rectangular grid. This ensures even spacing between pixels.
Different arrangements serve different purposes:
- Standard grid layout – Uniform spacing for consistent image quality
- Staggered arrangements – Enhanced resolution and reduced pixel visibility
- Cluster configurations – Groups of LEDs as single pixel units
Optimal pixel arrangement is vital for great viewing experiences. It works well for digital signage and large outdoor displays.
Addressing Schemes in Matrix Displays
Addressing schemes control individual pixels in the matrix. They decide which pixels to light up for the desired visuals.
Multiplexing is the main technique used. It sends control signals to rows and columns to light up pixels. This method is efficient with limited circuitry.
Modern displays use advanced addressing schemes. These include:
- Pulse-width modulation for brightness control
- Refresh rate optimisation to prevent flickering
- Dynamic scanning techniques for power efficiency
These schemes help create vibrant, high-resolution displays. They also ensure energy efficiency and reliability.
What is Matrix Technology: Core Concepts Explained
Matrix technology is at the heart of today’s display systems. It organises light sources into grids for vibrant visuals. We’ll look at its history and key parts that make up modern displays.
The Evolution of Matrix-Based Display Systems
The story of matrix technology started in the 1960s. In 1968, Hewlett-Packard introduced practical LED displays. This was a big step forward in display tech.
In the 1970s and 1980s, researchers made matrix systems better. They moved from simple to active matrix designs. Active matrices use thin-film transistors for precise pixel control.
Today, we have AMOLED displays with advanced active matrices. Each update has improved resolution, colour, and energy use. This shows how matrix tech keeps getting better.
Key Components of Matrix Technology
Matrix displays need several parts to work well. Knowing these parts helps us understand how displays perform so well.
Light Emitting Diodes (LEDs) as Building Blocks
LEDs are the basic parts of matrix displays. They turn electrical energy into light. Their small size and efficiency are perfect for dense displays.
In matrix displays, LEDs are pixels in a grid. Each LED is a single unit that can be controlled. Some systems use multiple colours in each pixel.
The quality of LEDs affects display performance. Better LEDs mean brighter, more colourful displays that use less power.
Driver Circuits and Control Systems
Driver circuits are the brain of matrix displays. They manage power and timing for LEDs. Without them, displays wouldn’t work.
Control systems handle input signals and LED patterns. They make sure each pixel gets the right signal at the right time. This creates the smooth visuals we expect.
Modern driver circuits have features like brightness control. They also handle colour mixing and calibration. These systems are getting smarter and more reliable.
| Component Type | Primary Function | Evolution Milestones |
|---|---|---|
| LED Elements | Light emission and colour production | 1968: First practical LEDs; 2000s: High-efficiency designs |
| Driver Circuits | Power management and signal control | 1970s: Basic IC drivers; 2010s: Integrated smart drivers |
| Control Systems | Image processing and pixel addressing | 1980s: Microprocessor control; Today: AI-enhanced processing |
| Matrix Architecture | Physical organisation and electrical pathways | 1990s: Active matrix adoption; Present: Flexible matrix designs |
LEDs and driver circuits work together for amazing displays. As matrix tech evolves, these parts get better and more efficient. This leads to displays that are better in quality and use less energy.
The Anatomy of Modern LED Display Systems
Modern LED display systems are a blend of engineering and materials science. They offer better visuals than old display tech. These systems are compact, light, and easy to install, yet they perform well.
LED Panel Construction and Materials
The base of an LED display is its panel. It’s made from top-notch materials and precise methods for lasting quality. Modern panels use new composites and alloys for strength without being too heavy.
PCB Design and Thermal Management
Printed circuit boards are key in LED displays. They hold thousands of LEDs and their control circuits. Good PCB design uses copper layers for better power and signal flow.
Keeping the LEDs cool is vital. Heat sinks, pads, and vents help spread out the heat. This stops the LEDs from getting too hot and keeps them working well for a long time.
- Aluminium heat spreaders for uniform temperature distribution
- Thermal interface materials with high conductivity
- Active cooling solutions for high-brightness applications
Encapsulation and Environmental Protection
LED encapsulation protects against the environment. Special resins and coatings shield the inside from moisture, dust, and damage. This helps the display last longer, even in tough conditions.
Sealing the display meets international standards, often reaching IP65 or higher for outdoor use. This ensures it works well in different climates and places.
Pixel Pitch and Resolution Considerations
Pixel pitch affects how a display looks and how far away you can see it clearly. It’s the space between pixels’ centres, measured in millimetres.
Smaller pixel pitches mean higher resolution and better for close-up views. Bigger pitches are good for longer distances. Choosing the right pixel pitch balances tech needs with real-world use.
| Pixel Pitch (mm) | Optimal Viewing Distance | Typical Application | Resolution Capability |
|---|---|---|---|
| 1.2 – 1.9 | 2 – 4 metres | Control rooms, retail | Ultra high definition |
| 2.0 – 2.9 | 4 – 8 metres | Corporate lobbies, studios | High definition |
| 3.0 – 4.9 | 8 – 15 metres | Stage backgrounds, arenas | Standard definition |
| 5.0+ | 15+ metres | Stadiums, large venues | Basic resolution |
Knowing about pixel pitch helps designers make displays that meet specific needs. The right choice ensures clear images for everyone, no matter their distance from the screen.
Types of LED Matrix Display Technologies
The world of LED matrix displays has many different technologies. Each one has its own special features and uses. Knowing about these helps experts pick the right one for their needs.
Surface-Mounted Device (SMD) LED Displays
SMD LED technology is the most common in the industry today. It uses tiny LED chips on printed circuit boards.
This design is small and allows for more pixels and better colour mixing. It makes displays bright and clear for both inside and outside use.
Direct View LED (DVLED) Technology
DVLED technology is great for big displays. Viewers see the LEDs directly, without any extra layers. This makes the display very bright and has wide viewing angles.
It’s perfect for big screens in stadiums, large ads, and building designs. The direct view ensures the image looks good from far away.
Conventional Through-Hole LED Displays
Through-hole technology is older. It uses LEDs inserted through holes in the circuit board. It was common before surface-mounted tech became popular.
Even though it’s not as common now, it’s good for certain needs. Its bigger pixels are great for very long distances.
Mini-LED and Micro-LED Innovations
Micro-LED innovations are the latest in display tech. These tiny LEDs are under 100 micrometres, making for very high pixel density.
Big names like Sony, Apple, Samsung, and LG are working on microLED. An expert says, “MicroLED displays have smaller LEDs, which is a big challenge.”
These new techs promise better brightness, energy use, and colours. But, they’re hard to make and expensive. Mini-LED is a step in between, improving backlighting in LCDs. Both are leading to better visuals.
How LED Matrix Displays Function Technically
Every LED display has a complex system behind it. This system uses electronic control to turn digital signals into the bright images we see. It needs careful work from many parts.
https://www.youtube.com/watch?v=gBK_6dbJyUg
The Scanning Method and Refresh Rates
LED matrices use a smart scanning method to manage thousands of diodes. They turn on rows of LEDs one after another, not all at once.
The refresh rate shows how often the display updates per second. A higher rate means less flicker and smoother motion, key for videos and fast images.
Today’s displays refresh between 1,920Hz and 3,840Hz. This is faster than our eyes can see. It stops motion blur and keeps images steady, even when changing fast.
| Scanning Type | Refresh Rate Range | Best Application | Power Consumption |
|---|---|---|---|
| Static Drive | Up to 4,000Hz | High-end video walls | Higher |
| 1/4 Scan | 1,920-2,560Hz | General commercial use | Moderate |
| 1/8 Scan | 960-1,920Hz | Basic signage | Lower |
| 1/16 Scan | 480-960Hz | Text-only displays | Minimal |
Colour Reproduction Mechanisms
LED displays get their colour accuracy from advanced systems. These systems control each colour channel carefully. They make sure the colour looks the same everywhere.
RGB Colour Mixing Technology
The heart of LED colour is RGB colour mixing. It mixes red, green, and blue diodes to create millions of colours.
Each pixel has these three LEDs in a special arrangement. The RGB colour mixing algorithms figure out how bright each diode should be for the right colour.
Top displays use sub-pixel rendering for even better colour. This makes colours smoother and more true to life.
Colour Calibration and Consistency
Keeping colours the same across big displays needs careful calibration. Makers do this at the factory to match each LED to colour standards.
Top displays have systems that adjust for LED ageing and light changes. This keeps the RGB colour mixing perfect over time.
Brightness Control and Dimming Techniques
Good brightness control is key for LED displays. Modern systems use pulse-width modulation (PWM) to control light with great precision.
PWM quickly turns LEDs on and off, too fast for our eyes to see. The ratio of on-time to off-time sets the brightness without changing the colour.
Advanced brightness control systems use light sensors to adjust based on the environment. This makes sure we can see well while saving energy in the dark.
Top displays can control brightness at the pixel level. This means they can dim specific areas for better contrast. It’s called local dimming.
Control Systems and Processing for LED Matrices
Every LED matrix display has a complex system behind it. This system turns simple signals into amazing visuals. It’s like a brain that makes sure every pixel works together perfectly.
Video Processors and Signal Handling
Video processors are the heart of LED matrices. They take in different signals and turn them into data the display can use. This process is key to making the display work right.
They do many important things, like:
- Changing signal formats and resolutions
- Adjusting colours and brightness
- Making images fit the screen
- Matching the display’s refresh rate
Good video processors work fast and keep images clear. This means what you see on the display is exactly what was meant to be shown.
Content Management Systems
Content management systems give users full control over what’s shown on LED displays. They let you plan, edit, and arrange content with ease.
These systems offer:
- Easy scheduling with calendars
- Pre-made templates for a consistent look
- Updating content on many displays at once
- Setting permissions for different users
These tools make managing big display networks simple. Even people who aren’t tech-savvy can update content easily.
Real-Time Control and Monitoring
Today’s LED matrix systems can be controlled and checked in real-time. This means you can make changes and check how things are going right away. It helps keep displays running smoothly, no matter what.
These systems include:
- Tracking temperature and humidity
- Finding and fixing pixel problems quickly
- Adjusting brightness based on the room
- Watching how much power is used
As one expert says:
“The active-matrix structure ensures that each pixel is refreshed individually, giving better response and evenness.”
This fine control helps keep displays looking great. It also lets operators fix any problems fast.
Applications of Matrix LED Display Technology
Matrix LED display technology changes how we see things in many fields. It makes a big impact in both business and art.
Large-Scale Outdoor Advertising Displays
Outdoor ads need to be seen in all weather. Matrix LED screens show bright images even in sunlight. They fight off glare and weather.
Big brands use these screens for eye-catching billboards. Sports places use them for scoreboards and replays. They work well all year round.
These displays can be any shape or size. They make brands stand out in a way regular signs can’t.
Indoor Digital Signage Solutions
Digital signs have changed how we talk inside. Shops use them to show off products. Offices use them for messages and directions.
These systems show colours well and are easy to see from any angle. They make shopping more fun. Companies talk to visitors and staff better.
Different places need different displays:
| Environment | Recommended Brightness | Typical Size Range | Key Features |
|---|---|---|---|
| Retail Stores | 500-800 nits | 55-85 inches | High colour accuracy, touch capability |
| Corporate Lobbies | 400-600 nits | 85-110 inches | Sleek design, content scheduling |
| Restaurants | 300-500 nits | 43-65 inches | Weather resistance, menu integration |
| Transport Hubs | 700-1000 nits | 100-150 inches | High durability, 24/7 operation |
Broadcast and Studio Backgrounds
TV studios use matrix tech for cool backgrounds. News shows have virtual sets. Shows have amazing stage designs.
Producers can change backgrounds live. This saves money on sets. It makes shows more flexible.
Live events use video walls for stunning backdrops. Concerts and awards shows have incredible visuals. The displays match the music and lights perfectly.
Architectural and Creative Installations
Matrix tech combines with building design. Facades become art at night. They light up buildings in a new way.
Museums and galleries use it for interactive exhibits. Visitors see things in a new light. The tech lets art change with the viewer.
Public spaces have permanent LED art. These become landmarks. They mix art with tech in a big way.
Brands use custom displays for events. They create special installations for launches. This shows the tech’s creative side.

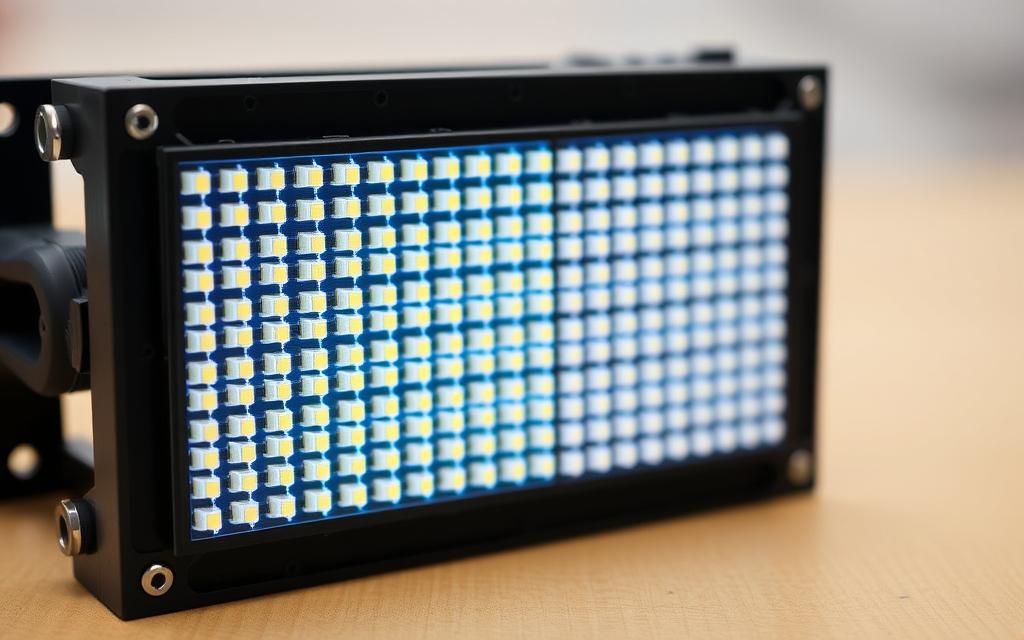

Technical Specifications and Performance Metrics
When looking at LED matrix displays for work, knowing the technical specs is key. These details show how well a display performs, how reliable it is, and how it works. They affect how good the display looks and how long it lasts.
Luminance and Viewing Angle Specifications
Luminance shows how bright an LED display can show images. Outdoor screens need to be very bright, over 5,000 nits, to fight against sunlight. Indoor screens are usually between 800-1,500 nits for easy viewing.
Viewing angle specs tell us how far we can move and see a clear image. Top-notch LED displays keep colours and brightness right up to 160 degrees in all directions. This means everyone, no matter where they sit, gets a great view.
Contrast Ratio and Colour Gamut
The contrast ratio shows the difference between the brightest white and darkest black. High ratios, over 5000:1, make images look richer and more real. This is key in dark places where images need to pop.
Colour gamut is the range of colours a display can show. Professional LED displays cover 90-98% of the DCI-P3 colour space. Some even reach 100%, giving amazing colour and brightness.
Power Consumption and Efficiency
LEDs are much more energy-efficient than old display tech. As one expert says:
AMOLED panels are very energy-efficient because they only use power when pixels are on.
LED displays use smart power management to save energy. They use less power in dark scenes and more in bright ones. Power use varies from 150-400 watts per square metre, depending on how bright it is and what’s being shown.
Durability and Lifespan Expectations
LED displays are very durable and last a long time, over 100,000 hours. This means they can work non-stop for more than a decade. Their long life comes from:
- Being solid-state with no moving parts
- Using high-quality materials that resist damage
- Having smart cooling systems
- Being protected from moisture and dust
Most makers give a lifespan estimate when brightness drops to 50% of what it was. Keeping the display clean and well-ventilated can make it last even longer.
Installation Considerations for LED Matrix Systems
Getting the installation right is key for the best performance and life of an LED matrix system. It’s all about planning well to tackle technical and environmental challenges. You need to think about the structure, electrical setup, and how to protect it from the environment.
Structural Requirements and Mounting Options
LED displays need strong support systems that fit their setting. Their modular design lets you set them up in many ways. But, each setup must have the right mounting to hold the weight.
There are several ways to mount them:
- Rigid aluminium frameworks for permanent wall installations
- Truss systems for hanging applications in auditoriums and venues
- Free-standing structures for ground-based installations
- Custom architectural integration for specialised applications
Modern LED panels are light, making them easy to handle and install. This makes it possible to get creative with your setup while keeping it stable. Experts usually do a site survey first to figure out the best way to mount it.
Cabling and Power Distribution
Getting the power right is vital for LED matrix systems. Good cabling keeps the display stable and stops voltage drops. You need to plan the electrical setup carefully to meet the display’s power needs.
Important things to consider for power management include:
| Component | Specification | Installation Note |
|---|---|---|
| Power cables | Copper core, appropriate gauge | Direct burial rating for outdoor applications |
| Distribution boxes | IP65 rated minimum | Positioned for easy maintenance access |
| Surge protection | UL-listed devices | Required for all outdoor installations |
| Backup systems | UPS integration | Essential for critical applications |
Signal cabling also needs careful attention to keep data clear across the matrix. Use high-quality connectors and manage cables well to avoid signal loss. Installers usually test all electrical connections under load before finishing the job.
Environmental Factors and Protection Ratings
Environmental conditions greatly affect how well an LED matrix system works and lasts. The right protection rating is key, more so for outdoor use. The IP (Ingress Protection) rating system helps classify how well a display can handle the environment.
Here are some common IP ratings for LED displays:
- IP54: Protected against dust limited ingress and water splashes
- IP65: Dust-tight and protected against water jets
- IP67: Dust-tight and protected against temporary immersion
- IP68: Dust-tight and protected against continuous immersion
Keeping the temperature right is also important. LED matrices get hot when they’re on, so they need good air flow indoors. Outdoors, they must handle extreme temperatures well.
It’s also vital to protect against humidity, which is a big issue near the sea. Special coatings and sealed parts help prevent corrosion and electrical problems. Regular checks ensure the display stays protected over time.
Advantages of Matrix-Based LED Display Technology
Matrix-based LED display systems have many benefits. They are better than old display technologies in many ways. Their design and engineering give users top-notch performance and reliability.
Superior Brightness and Visibility
LED matrix technology shines brighter than most displays. It’s perfect for outdoor use because it’s visible even in sunlight. The light is strong, keeping images clear, no matter the light around.
Each LED in the matrix adds to the display’s brightness. This way, the whole image stays sharp and colourful. It’s a big win for anyone who needs clear displays.
Scalability and Modular Design Benefits
Matrix LED systems are super flexible. You can make them big or small, depending on what you need. This flexibility is great for fitting displays into any space.
These systems are also easy to update. You can change parts without having to replace the whole thing. This makes your display last longer and grow with your needs.
Energy Efficiency Compared to Alternative Technologies
LED matrix displays use less power than others. This means they cost less to run and are better for the planet. They’re efficient because of smart power management and LED drivers.
They save a lot of money, too, in big installations that run all day. LEDs turn most of their energy into light, not heat. This is good for your wallet and the environment.
| Technology | Power Consumption (Watts/m²) | Estimated Annual Cost* | Lifespan (Hours) |
|---|---|---|---|
| LED Matrix Display | 250-400 | $450-720 | 100,000+ |
| LCD Display | 300-500 | $540-900 | 60,000 |
| Plasma Display | 400-600 | $720-1080 | 40,000 |
| Projection System | 350-800 | $630-1440 | 5,000-10,000 |
*Based on 12 hours daily operation at $0.15/kWh
Durability and Low Maintenance Requirements
LED matrix systems are very tough and last a long time. They need little to no upkeep. This makes them perfect for places that need displays to work hard all day.
They’re built to last, with no moving parts to break. When you do need to fix something, it’s easy and quick. For more on durable displays, check out dot matrix LED display panels.
They also handle the weather well. Good LED matrices keep out moisture, dust, and extreme temperatures. This means they work great indoors and outdoors, with little care needed.
Challenges and Limitations in LED Matrix Technology
LED matrix displays are impressive but come with practical challenges. These issues affect budgeting and technical operation.
Initial Investment and Cost Considerations
LED matrix systems cost more than other display technologies. The high-quality components and advanced systems raise the initial cost.
The cost challenges don’t stop at the purchase. Installation and infrastructure upgrades add to the expenses. Companies need to plan their budgets for:
- Display modules and control systems
- Professional installation services
- Structural support modifications
- Power distribution enhancements
Even with price drops, high-quality LED matrices are a big investment. They require careful financial planning.
Technical Complexity and Expertise Requirements
LED matrix technology is complex. It needs special knowledge for setup and maintenance. This technical complexity is a big hurdle for companies without AV teams.
Understanding the technology is key. It involves:
| Technical Area | Expertise Required | Common Challenges |
|---|---|---|
| Signal Processing | Video formatting and scaling | Resolution mismatches |
| System Configuration | Calibration and colour matching | Inconsistent brightness levels |
| Network Integration | IP addressing and data protocols | Communication failures |
| Maintenance Procedures | Module replacement techniques | Diagnosing faulty components |
Many companies need to hire specialists for setup and support.
Viewing Distance Limitations
LED matrix performance changes with viewing distance. The pixel pitch affects the optimal viewing range.
Too close to fine-pitch displays shows individual pixels, lowering image quality. Coarse-pitch displays look pixelated from short distances.
This means careful planning is needed for:
- Audience positioning and sightlines
- Display size selection
- Pixel pitch specification
- Content design considerations
Calculating the viewing distance ensures the technology meets expectations.
Heat Management Challenges
Keeping the LED matrix cool is critical. High-density LEDs produce a lot of heat, needing advanced cooling.
Without good heat management, issues arise:
- Colour shifting and inconsistent brightness
- Reduced component lifespan
- Potential premature failure
- Increased energy consumption
As one expert says:
“Thermal management is a major challenge in high-density LED displays. It affects performance and lifespan.”
Advanced cooling systems and controls help but increase complexity and cost.
Knowing these challenges helps companies make informed decisions about LED matrix technology.
Future Trends in Matrix LED Display Technology
Next-generation matrix LED displays are set to change how we see digital content. They will offer better visuals, smarter features, and be kinder to the environment. This will be true across many fields.
Advancements in Mini-LED and Micro-LED Development
There’s big progress in mini-LED and micro-LED tech. These advancements aim to make pixels smaller but brighter and more colourful.
Smaller pixels mean we can have higher resolution screens without making them bigger. This leads to clearer images and smoother videos. Making these technologies is getting easier too.
Integration with IoT and Smart Technologies
Today’s LED displays are getting smarter with IoT tech. This IoT integration lets them talk to other devices easily.
Smart displays can change what they show based on where they are or who’s watching. They can also learn how to use less energy. This makes them more than just screens.
Transparent and Flexible Display Innovations
There’s work on making LED displays that you can see through and bend. These flexible displays can fit on curved surfaces and odd shapes.
Transparent displays let you see what’s behind while showing digital stuff too. This is great for shop windows and building designs. The science behind these is getting better fast.
Sustainability Improvements and Eco-Friendly Materials
The industry is focusing on being green. They’re using materials that can be recycled and cutting down on harmful stuff.
They’re also making displays that use less power but work better. This helps the planet both when displays are made and when they’re in use.
| Technology Type | Key Advantage | Current Challenge | Projected Market Adoption |
|---|---|---|---|
| Micro-LED | Superior contrast ratio | Manufacturing complexity | 2025-2026 |
| Transparent OLED | See-through capability | Cost per unit | 2024-2025 |
| Flexible Mini-LED | Curved installations | Durability testing | 2024 onwards |
| IoT-Integrated Displays | Smart functionality | Data security | Already available |
These new techs are changing what matrix LED displays can do. They will soon lead to new ways of showing information.
Conclusion
This detailed look at matrix technology shows how LED displays are changing the game. They use basic matrix setups and advanced Micro-LED tech. This makes them key in many fields.
Our study highlights why Samsung, LG, and Sony’s displays lead the way. They are bright, flexible, and save energy. This makes them perfect for digital signs and TV studios, even if they cost more upfront.
Looking ahead, Mini-LED and Micro-LED tech will bring even more improvements. LED screens will get clearer, bendier, and connect better with the internet of things.
This summary shows how matrix tech is shaping our world. Display tech keeps getting better. Matrix solutions will keep leading in digital communication, opening up new creative and business chances.
